Touchscreen Anesthesia Work Station Control Button Co2 Absorber

Features

Specifications

Type: Anesthesia Equipments & Accessories,Anaesthesia Machine,Breathing Apparatus

Instrument Classification: Class III

Product Name: Hospital Vaporizer Anesthesia Machine,Adult Anaesthesia Machine,Anaesthetic Machine With Ventilator Machine Price,Portable Anaesthesia Machine

Application: Operating Room,Applied For Child And Adult,Adult And Pediatric( 3kg Over)

Warranty: 1 Year

Tidal Volume: 10~1600ml

Gas Supply: N2O; 280kPa – 600kPa,O2/N2O 0.28Mpa~0.6Mpa

Highlight: touchscreen anesthesia work station, control button anesthesia work station, co2 absorber anesthesia work station

Add to compare

Add to wishlist

Shipping & Delivery

Courier delivery

Our courier will deliver to the specified address

2-3 Days

From $20

DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From $40

Warranty 1 year

More details

Free 30-Day returns

More details

Specification

Overview

Processor

Display

RAM

Storage

Video Card

Connectivity

Features

Battery

General

Description

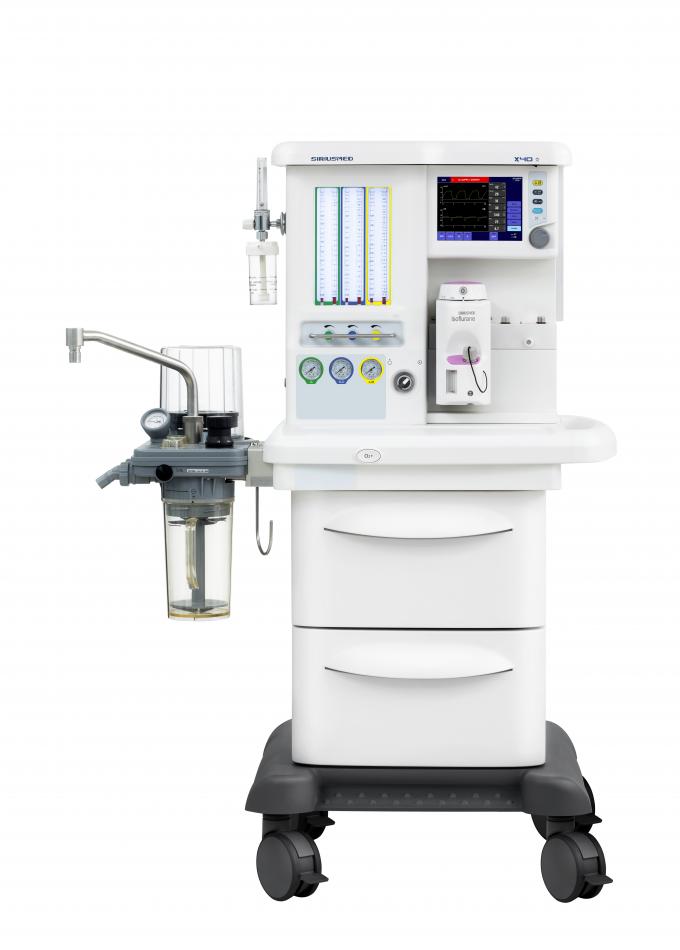

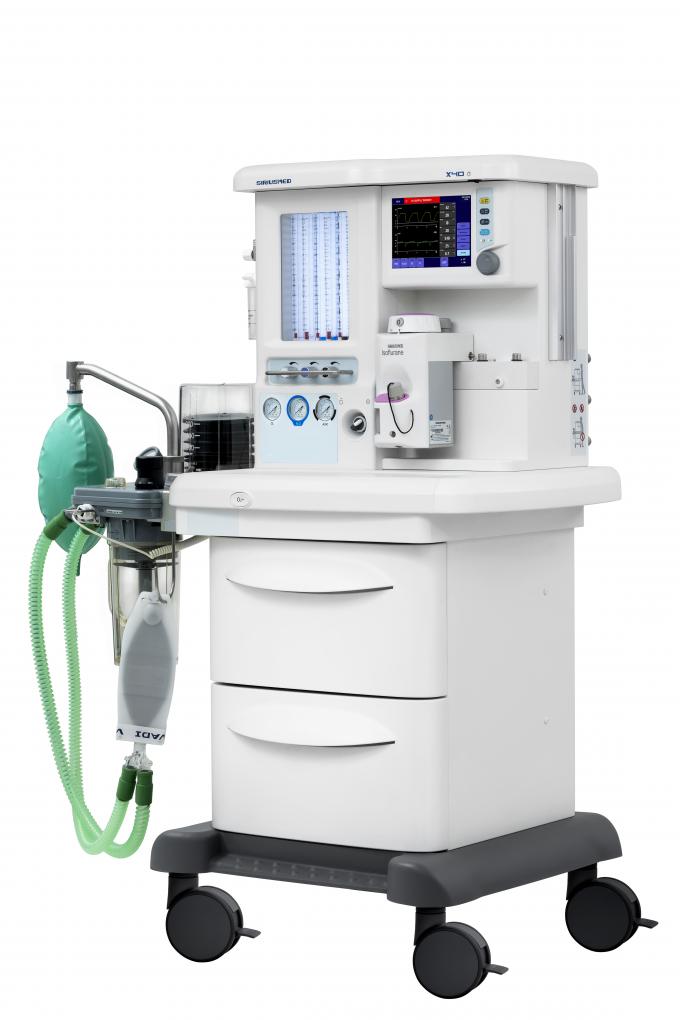

Anesthetic Workstation X40, 8.4” LCD Human-computer interaction system with touch screen

anesthetic workstation X40
CO2 Absorber System

134°autoclavable CO2 absorber integrated bypass system, totally latex free.

Variable orifice flow sensor design.

35° (+-2) integrated heating system.

Bypass design with canister removes alarm.

No tools installation, easy maintenance.

System Speciﬁcations

System Speciﬁcations
Technical parameters	Speciﬁcation
Machine
Size	1410 × 950 × 650 (H × W × D)
Weight	110kg
Top cover	30kg bearing weight
Size	580 x 400mm
Display
Type	Color TFT (touch screen)
Size	8.4’ inches
Resolution	640 × 480 pixels
Work surface light	LED
LED indication
Alarm Indication
AC power
Battery
Audio instruction
Speaker	Alarm sounds
Control
Button Press key
Interface
RS232, VGA, USB Three auxiliary output power interface
Moving means
Castor	4 antistatic castors, diameter Φ125mm (2 brake Infront)
Toolbox
Drawer	200 × 392 × 398 mm(H×W×D)x2
Respiratory System
Air bellow	1500mL
Absorption chamber	1500mL
Connection	Suction / ACGO ports: standard OD 22mm, ID 15mm, tapered connector; Exhalation ports: standard OD 22mm, ID 15mm, tapered connector. Manual breathing port: diameterΦ22cm
System leaks	< 40ml/min
System compliance	≤ 4 mL / cmH2O
Resistance	Inspiratory < 0.6 kPa; Expiratory < 0.6 kPa
Vaporizer
Description	Parameter
Technical Speciﬁcation
Flowrate range	0.2-15L/min
Connector type	Selectatec compatible, plug in, cage mount
Dosing methods	Pour-ﬁl, Easy-ﬁl, Quick-ﬁl (Sevoﬂurane)
Working environment
Working temperature	+15℃ ~ +35℃
Relative humidity	5%~95%(non-condensing)
Atmospheric pressure	70kPa ~ 106kPa
Storage temperature	-20℃ ~ +55℃
Concentration:	0~5.0%: Isoflurane, Halothane 0 ~ 8.0%: Sevoflurane
Main technical parameters
Description	Parameter
Display	8” TFT, Touch screen, Top light
Ventilation Model	VCV, PCV, Manual, Standby SIMV-V (Optional:SIMV-P, SPONT/PSV)
Tidal volume	20－1500ml(optional 10-1600ml), Electronic PEEP, Lung mechanics parameters.
Wave form	Paw-T, Flow-T, V-T, CO2-T
Loop	P-V, V-F
Pressure Monitoring	Central: O2, N2O, Air Cylinder: O2, N2O
Monitoring Parameter	Tidal volume, MV, Frequency, I : E, Airway Pressure, Pmin, Compliance, Resistance
Application	Adult and Infant
Vaporizer	Selected bar for two position
Gas supply	O2, N2O, Air
6 tubes Flowmeter	O2: 0～10LPM; N2O: 0～12LPM; Air: 0～15LPM;
O2%	O2 sensor
Auxiliary O2	Auxiliary O2 Flow meter(O2: 0～15LPM) (Optional)
ACGO	Yes
Battery	NI-MH battery build-in. >90mins
Yoke	2 ( O2, N2O) (Optional)
Gas Cylinder	O2, N2O (Optional)
Cycle Absorber	Intergrade, bypass Design, heating system.
Setting Parameter
Description	Parameter
Tidal volume	20～1500 mL(optional 10-1600ml)
Frequency	1～100 bpm
Tinsp	0.1～10.0s
I:E	4:1～1:10
Pause	0～60%
PEEP	OFF, 3～30 cmH2O
Psupp	0～70 cmH2O
Pressure Control	5～70 cmH2O
Flow Trigger	0.5～20 L/min
Pressure Trigger	0～20 cmH2O
Ramp	0～2s
Monitoring Parameter
Description	Parameter
Tidal volume Inspiration	0～2500 mL
Tidal volume Expiration	0～2500 mL
MV	0～60 L/min
MVspont	0～60 L/min
Frequency	0～100 bpm
Ratespont	0～100 bpm
I : E	9:1～1:99
Ppeak	0～100 cmH2O
Pmean	0～100 cmH2O
PEEP	0～100 cmH2O
Pplat	0～100 cmH2O
O2%	15～100%
Compliance	0～300 mL/cmH2O
Resistance	0～600 cmH2O/(L/s)
EtCO2 (Optional)	0～13.3 %
FiCO2 (Optional)	0～13.3 %
Alarm Parameter
Description	Parameter
Tidal volume
Upper limit	30～2000 mL
Lower limit	OFF, 20～1500 mL
MV
Upper limit	1～99 L
Lower limit	0～98 L
O2% (Optional)
Upper limit	22～100%, OFF
Lower limit	20～99%
Airway Pressure
Upper limit	10～99 cmH2O
Lower limit	1～98 cmH2O
Frequency
Upper limit	1～100 bpm
Lower limit	0～99 bpm
EtCO2 (Optional)
Upper limit	0.1～13.3 % ;
Lower limit	0～13.2 %;
FiCO2 (Optional)
Upper limit	0.1～13.3 % ;
Continue Pressure High	Airway pressure beyond(PEEP+15)cm H2O, continuedly(15+1)s
Apnea	10～60 s, Increase: 1s
O2 supply down	< 0.28 MPa
Mains failure	Automatic switch battery
Battery low	< 10 min
Battery discharged	< 5 min
Mute	≤120 s
Pressure low	< -10cmH2O
Power Speciﬁcations
Description	Parameter
External AC power
Input Voltage	100 – 240V
Input Frequency	50/60Hz
Input Power	<150 VA
Internal Battery
Number of batteries	A battery pack
Battery Type	Nimh batteries
Rated battery voltage	12VDC
Battery capacity	4200mAh
Shutdown Delay	Less than 10min (using a new fully charged battery, low battery alert since the ﬁrst post)
Shortest supply time	90min
Charging time	4h
Work environment
Temperature	10 ~ 40 ºC
Humidity	5 ~ 95%, non-condensing
Environmental pressures	70 ~ 106 kPa
Storage environment
Temperature	-20 ~ 55 ºC
Humidity	5~ 95%, non-condensing
Environmental pressures	50 ~ 106 kPa
