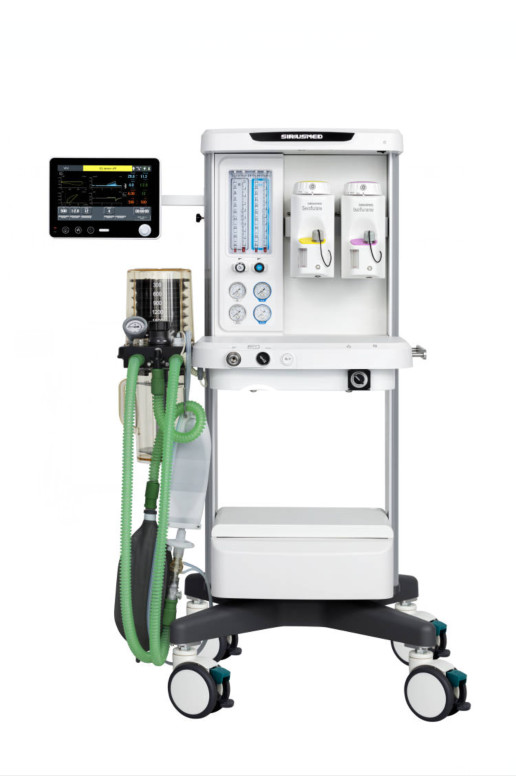

TOUCH SCREEN VETERINARY USE ANESTHESIA MACHINE X30 MADE IN CHINA, veterinary operating table
$4,000.00
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From $20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From $40
-
Warranty 1 year
-
Free 30-Day returns
Specification
Overview
Processor
Display
RAM
Storage
Video Card
Connectivity
Features
Battery
General
Description
Anrsthesia Machine X30-VCV,PCV,PSV,SIMV-VC,SIMV-PC,PRVC,SIMV-PRVC,Manul/Spontneous
★Pneumatic Oxygen driven anesthesia ventialtor
*Tidal Volume 50~1500mL

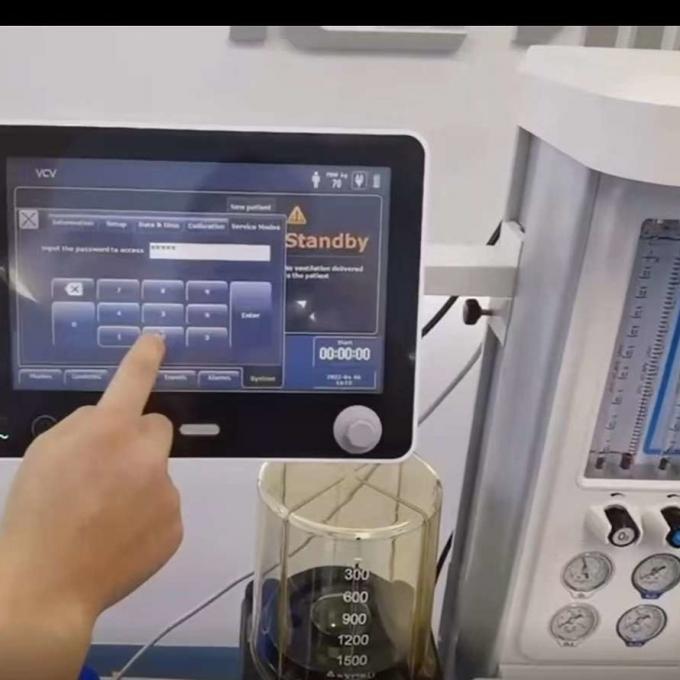

*10″ TFT LCD color screen with touch screen
*Built-in battery
★Gas supply: O2, AIR
★Flowmeter: Digital Displaying
★O2 flush
1 storage drawer
Technical Specifications
Mode of Ventilation
VCV, PCV, SIMV-VCV, SIMV-PCV
PS with Backup mode(VCV or PCV)
Manual/Spontaneous with respiratory monitoring
PRVC, SIMV-PRVC(optional)
| Venilation Settings | Expiratory Tidal Volume | ||
| Tidal Volume | 50~1500ml | Low Limit Range | OFF, 10~2990ml |
| 10-50ml(Optional) | High Limit Range | 20~3000ml | |
| Frequency | 1~100bpm | EtCO2(optional) | |
| Tinsp | 0.1~10.0S | Low Limit Range | 0~13,2% |
| I:E | 4:1~1:10 | High Limit Range | 0.1~13.3% |
| Pause | 0-50% | Apnea Time | |
| PEEP | OFF, 3~20 | High Limit Range | 10~60S |
| Pressure Support | 0~80cmH2O | Electrical Specfications | |
| Pressure Contorol | 5~80cmH2O | Power | |
| Fsens | 0.5~20L/min | Mains Power Supply | 100~240VAC 50/60HZ |
| Psens | 0~20cmH2O | Current Input | 2A max |
| Tslope | 0~2S | Power Consumption | Approx. 90VA |
| Esens | 5~80% | Backup Battery | |
| Monitoring | Battery Type Lithium Battery | ||
| VTI | 0~2500ml | Operating time | More than 90 min |
| VTE | 0~2500ml | Charge time | 4 hours max |
| MV exp | 0~60L/min | Pneumatic Specification | |
| MV spn | 0~60L/min | Gas Supply | O2/N2O or O2/Air |
| ftotal | 0~100bpm | Gas Supply Requirement | 280~600kPa |
| fspn | 0~100bpm | Environmental Specifications | |
| I:E | 9:1~1:99 | Operating Environment | |
| Ppeak | 0~100cmH2O | Temperature | 10~40℃ |
| Pmean | 0~100cmH2O | Humidity | 5~95%(noncondensing) |
| PEEP | 0~100cmH2O | Barometric | 70~106kPa |
| Pplat | 0~100cmH2O | Storage Environment | |
| Pmin | -20~100cmH2O | Temperature | -20~60℃ |
| FiO2(optional) | 15~100% | Humidity | 5~95%(noncondensing) |
| Cst | 0~300ml/cmH2O | Barometric | 50~106kPa |
| Cdyn | 0~300ml/cmH2O | Machine Specifications | |
| Rst | 0~600ml/cmH2O/L/S | Height | 1370mm |
| EtCO2(optional) | 0~13.3% | Width | 900mm |
| FtCO2(optional) | 0~13.3% | Depth | 630 |
| Alarms | Weight | 90Kg | |
| Minute Volume | 0~98L | ||
| High Limit Range | 1~99L | ||
| Breath Rate | |||
| Low Limit Range | 0~79bpm | ||
| High Limit Range | 1~100bpm | ||
| Airway Pressure | |||
| Low Limit Range | 0~98cmH2O | ||
| High Limit Range | 6~99cmH2O | ||
| FiO2 | |||
| Low Limit Range | 18~99% | ||
| High Limit Range | 19~100%, OFF |
