Covid Ventilator R55 -Patient Settings Automatic Stored And Can Be Restored Quickly
Good integration:
- Built-in active expiratory PEEP valve
- Built-in O2 & Air mixture device
- Built-in synchronized nebulizer
- Built-in battery (≥ 90 mins)
- Optional etCO2 , SPO2 monitoring module
- Lung mechanics parameters and loops
- Inspiratory hold with static compliance measurements
- Manual inspiration
- 100% O2 suction
- Nurse Call
- 72 hours Trend
High Performance Compressor
- Compact size, portable type for easy install.
- User convenient display, enable timely effective operate and maintenance efforts.
- Single Compressor is able to operate for max 2 units of ventilator simultaneously.
- Verified low noise suitable for long term working in ICU, oil free, overheat protection and high performance dehydration design makes the compressor ideal for isolated gas supply source.
- Dust-protected, incorporates temperature warning system & Auto/manual shut down features.
- High-end air compressor automatically switches between compressor and central gas supply.
System Specifications
| Pneumatic Ventilator | Operating Conditions | |||||
(Optional PRVC,NIV,VS) :见上描述 ,BACKUP

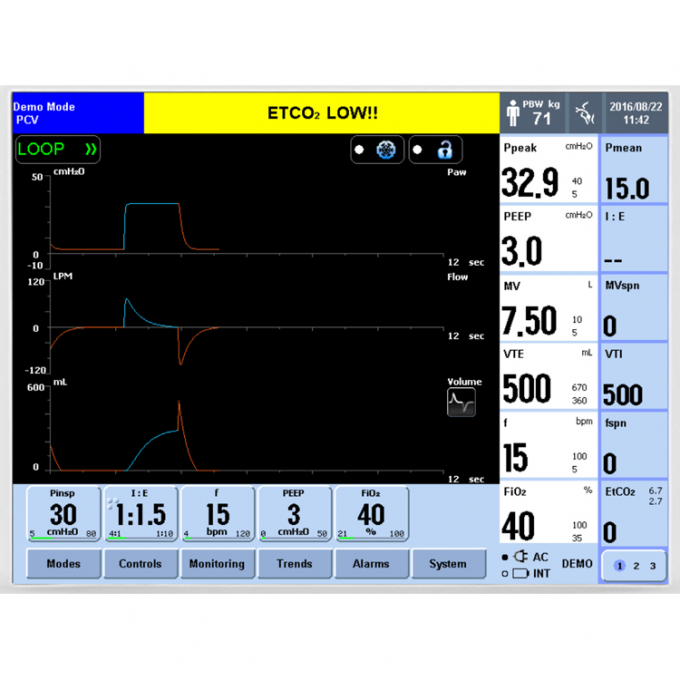

CO2-time, pulse rate-time, loop: P-V, F-V ,P-F
|
non-condensing (Operation)
(Operation & Storage): 500hPa-1060hPa
Ventilator: 455mm x 400mm x 300mm Trolley: 565mm X 535mmX 910mm
Ventilator: 12.5 kg Trolley: 20 kg |
|||||
| Standards | ||||||
|
||||||
| Alarm | Upper limit | Lower limit | ||||
| Tidal volume
Minute volume Oxygen concentration Airway pressure Respiratory frequency ETCO2 Pulse rate Circuit occlusion Apnea alarm O2 SUPPLY DOWN alarm Mains failure alarm Battery power low alarm Battery discharged alarm Alarm silence |
20~3000 mL
1~99 L 22~100%, OFF 1~99 cmH2O 1~120 bpm 0.1~13.3 kPa 31~250 bpm (PEEP+15) cmH2O, 15s 10~60s < 280 kPa Automatically switch < 10 min < 5 min ≤120 s |
OFF,20~2999 mL
0~98 L 20~100% 0~98 cmH2O OFF,1~99 bpm 0~13.2 kPa 30~249 bpm (PEEP+15) cmH2O, 15s 10~60s < 280 kPa Automatically switch < 10 min < 5 min ≤120 s |
||||
| Setting | Parameter | Monitoring | Parameter | |||
| Tidal volume
Respiratory frequency Inspiratory time Breath-hold time Pressure triggering Flowrate triggering PEEP Pressure support Pressure control High pressure level Low pressure level Oxygen concentration 100% O2 T-high T-low freeze Expiratory hold Inspiratory hold Manual inspiration |
20~2500mL
1~120 bpm 0.1~12 s 0~50% 0.5~20 L/min 0~50 cmH2O 0~80 cmH2O 5~80 cmH2O 5~80 cmH2O 0~50 cmH2O 21~100% 2mins 0.1~30s 0.3~30s Yes Yes Yes Yes |
Inspiratory tidal volume
Expiratory tidal volume Minute volume Spontaneous minute volume Spontaneous respiration frequency PEEP Airway peak pressure Mean airway pressure Inspiratory platform pressure Minimum airway pressure Inhaled oxygen concentration Airway resistance
Compliance RSBI PEEPi EtCO2 |
0~4000 mL
0~4000 mL 0~99 L 0~99 L/min 0~120 bpm 0~120 bpm 0~100 cmH2O 0~100 cmH2O 0~100 cmH2O 0~100 cmH2O -20~100 cmH2O 15% ~100 % 0~600 cmH2O/(L/S) 0~300 mL/cmH2O 0 ~ 9999 bpm/L 0~100cmH2O 0 ~ 100 mmHg |
|||
